Learn How to Adjust a Genie Garage Door Opener Force Adjustment

If your garage door stops halfway through opening or reverses for no reason, your opener's power settings are probably incorrectly set. Many homeowners assume the motor is dead when this happens, but the fix is usually much simpler and cheaper. To fix this issue, you may need to calibrate the force settings, travel limits, or other opener controls, depending on the source of the problem.

Knowing how to adjust Genie garage door opener force adjustment settings will save you from buying a new opener and keep your door operating safely. In this guide, you will learn exactly how to test and calibrate your system without stripping the gears or creating a safety hazard.

Force settings determine how much resistance the opener will tolerate before stopping or reversing the door, while travel limits dictate the exact physical points where the door starts and stops. If your travel limits are wrong, the door will slam into the ground or stop before closing completely. When your force settings are wrong, the door will reverse at the slightest bit of resistance or push down too hard on obstacles.

Think of travel limits as the map and force settings as the muscle. Your Genie opener uses an internal logic board, which is the electronic brain of the unit, to monitor how hard the motor works during a cycle. When the door hits friction from cold weather, dirty tracks, or worn rollers, the logic board monitors motor load and movement and can trigger a safety reversal when it detects excessive resistance.

You should never increase the motor force just to bypass a mechanical problem with the door. The real lifting is supposed to be done by the garage door springs, not the opener motor. If you try to force an unbalanced door to move by turning the power up to the maximum setting, you can damage the opener's internal components, drive system, or the garage door itself.

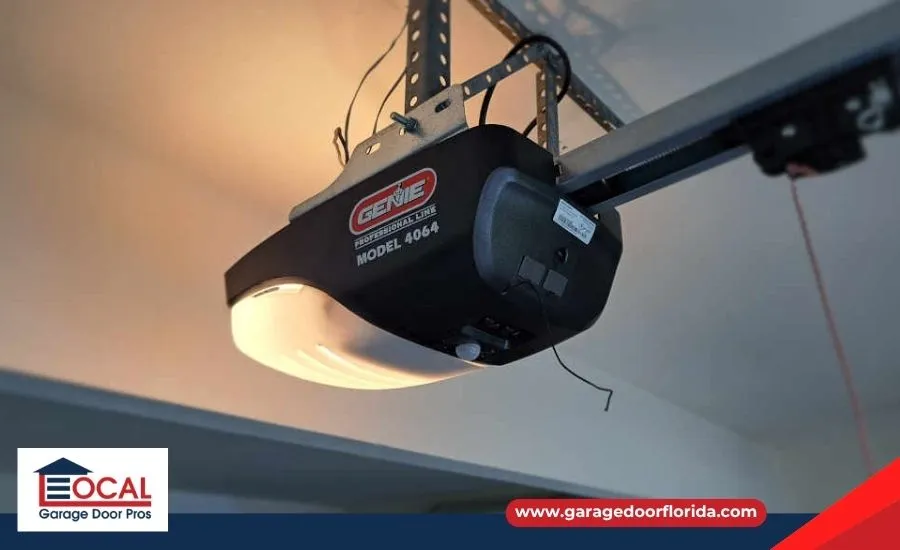

Adjusting your Genie garage door opener force involves either navigating the digital LED programming menu on modern DC motors or turning the physical force dials on older AC motors. Always adjust settings in small, incremental steps to maintain safe operational control.

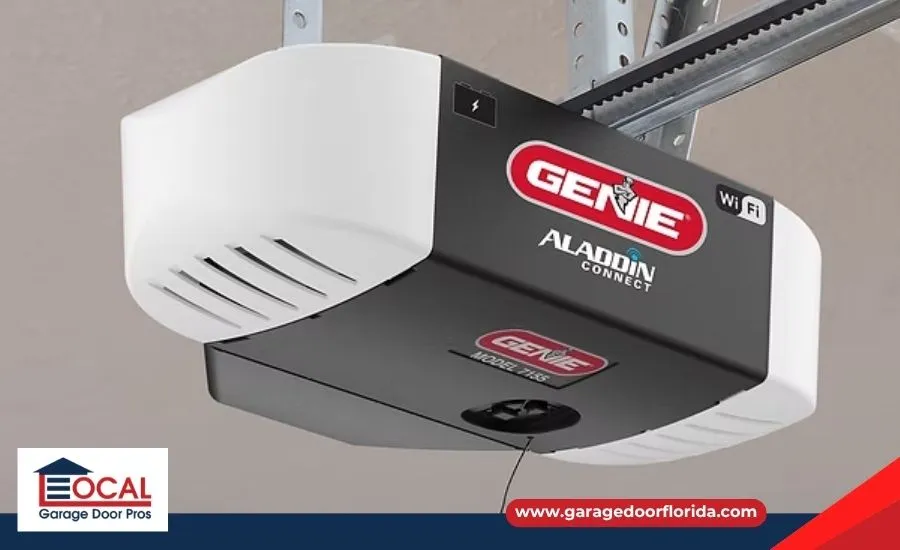

Modern Genie openers use digital DC motors that automatically calculate force during their initial setup. Follow these steps to calibrate the digital settings:

1. Press and hold the square program button until the round LED turns blue, then release it. The long purple LED light will start flashing.
2. Press the program button two more times. The round LED will flash purple, which means you are in the manual force tuning menu.
3. Check the color of the long LED to see your current force level. Press the up arrow button to increase the force, or press the down arrow button to decrease it.
4. Press the program button once to save the up force setting. The round LED will flash blue, showing you can now adjust the down force. Use the up or down arrows to change it.
5. Press the program button one last time to save everything. Run the door through one complete, uninterrupted opening and closing cycle using your wall button to lock the new settings into memory.

Note: Many Genie models use a similar programming process, but button sequences vary by model. Always verify the procedure in your owner's manual.

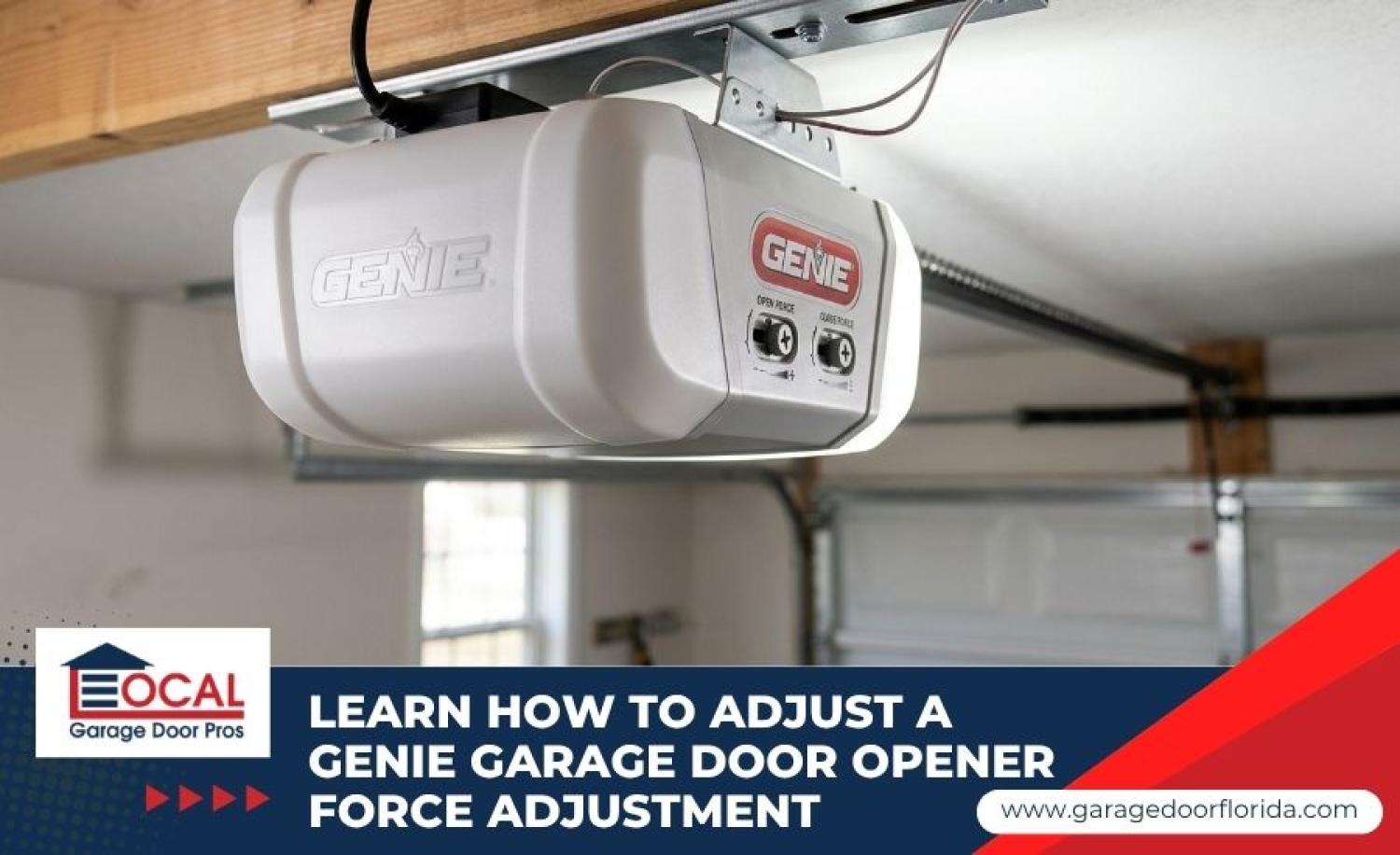

Older Genie units use a manual potentiometer, which is a small adjustable dial that controls electrical current, located on the back panel of the motor housing. Here is how to adjust the mechanical dials:

1. Find the two plastic screws on the back or bottom of the motor head labeled open force and close force.
2. Insert a small flathead screwdriver into the slot of the dial you need to change.
3. Turn the screw clockwise toward the plus sign to increase the force, or turn it counterclockwise toward the minus sign to lower the force. Only turn the dial an eighth or a quarter of a turn at a time.
4. Test the door by using your remote control to see if the false reversing stops.

Operating an automatic garage door while adjusting internal settings carries inherent physical risks due to the weight and tension of the system. You must follow strict precautionary steps to prevent accidental injury or damage to the unit during calibration:

• The Door Balance Check: Disconnect the opener by pulling the red emergency cord, and lift the door halfway by hand to ensure it stays in place without falling.
• The Torsion Spring Hazard: Never try to adjust the force settings to compensate for a broken or weak spring because these parts hold dangerous amounts of tension.
• The Block Obstruction Test: Always place a wood block on the ground after adjusting the power to verify that the door reverses safely on contact.
• Clear the Operating Path: Keep children, pets, and tools completely away from the path of the door while performing active test cycles.
• Avoid Excess Force: Never turn mechanical dials or digital levels to the maximum setting because this can crush objects before the auto-reverse system can activate.

Residential garage door openers must comply with widely adopted safety standards designed to reduce entrapment and crushing hazards. Failing to configure your Genie system within these established parameters can result in severe structural damage or legal liability:

• UL 325 Safety Regulations: This widely adopted safety standard requires residential garage door openers to include entrapment protection features and automatic reversal systems.
• DASMA Guidelines: Industry best practices recommend using only the amount of force necessary for reliable operation while maintaining safe reversal performance.
• Regional Climate Adjustments: Local weather changes like freezing winters can stiffen track grease and require minor seasonal power updates to keep the system working safely.
• Impact Force Thresholds: Professional testing verifies that the opener's entrapment protection system operates within applicable safety standards.

Professional technicians possess specialized diagnostic tools to handle complex force calibration issues that go beyond standard manual adjustments. Bringing in an expert ensures your system is accurately tuned without putting unnecessary strain on the motor head:

• Advanced Logic Board Diagnostics: Technicians can inspect the logic board, wiring, sensors, and motor system to identify electronic faults that may affect operation.
• Precision Force Gauge Testing: Technicians can measure operating and reversal forces using specialized testing equipment to verify safe door operation.
• Travel and Force Synchronization: Specialists recalibrate older units where worn travel limit switches interfere with the close force safety reversal system.
• Commercial-Grade Track Conditioning: Professionals eliminate hidden binding points in the tracks that trigger false force overloads during cold weather.
• Secondary Safety Loop Integration: Installers inspect and wire the infrared photo-eyes to work seamlessly with the motor's internal force logic.

Calibrating your Genie opener is all about finding the right balance between smooth operation and safety. You want just enough power to get the door up and down without overriding the built-in safety features that protect your family. Ensure precision and safety. Connect with our automation technician to calibrate your Genie's force profiling and run a certified safety reversal test.

Local Garage Door Pros is a full-service garage door company serving the Tampa, FL area, specializing in residential and commercial garage door repair, spring replacement, and emergency installation services for local property owners.

This usually means your close travel limit is set slightly too deep, causing the door to mistake the garage floor for an obstruction. The system triggers a safety reversal because the motor encounters excessive force before the logic board thinks the door has reached its final destination.

You can slightly increase the force settings by one increment on digital models or turn the force dial one-eighth of a turn clockwise on older systems. Cold temperatures thicken track grease and make doors heavier, requiring a tiny bit of extra power to overcome the added friction.

Most newer Genie models do not use physical adjustment screws and instead rely on digital programming controls. Instead, they feature digital logic boards configured entirely through a series of LED programming buttons labeled with plus, minus, and program options on the bottom or back of the motor head.

Setting the force too high overrides the built-in safety features, creating a severe crushing hazard for people, pets, and vehicles. The motor will continue to push down with maximum energy during a collision instead of reversing, which can also bend your door panels and strip the motor gears.

Open your garage door fully and place a solid two-by-four wood block flat on the floor directly in the center of the door's path. Close the door using your wall button; the door must stop and reverse back to the fully open position within two seconds of touching the wood block.
