How to Adjust Travel Limits on Chamberlain Garage Door Systems

Adjusting travel limits on Chamberlain garage door openers ensures your door stops at the correct open and closed positions. Proper settings prevent motor strain, protect the internal gears, and seal your home against wind, rain, and pests. Incorrect adjustments can cause early reversal, motor damage, or even structural issues.

Start adjusting your Chamberlain opener now to protect your home and keep your garage door operating safely. Small tweaks can prevent costly repairs later.

Your garage door must close flush against the floor to keep out wind, water, and pests. Improper travel settings can:

• Overwork the motor, grinding gears and burning out the logic board
• Leave gaps that compromise weatherproofing and security
• Violate wind-load compliance in coastal areas

Meeting strict Florida wind-load requirements depends on the door forming a tight seal to prevent dangerous internal pressurization during hurricanes. Correct travel limits keep your door operating safely and efficiently.

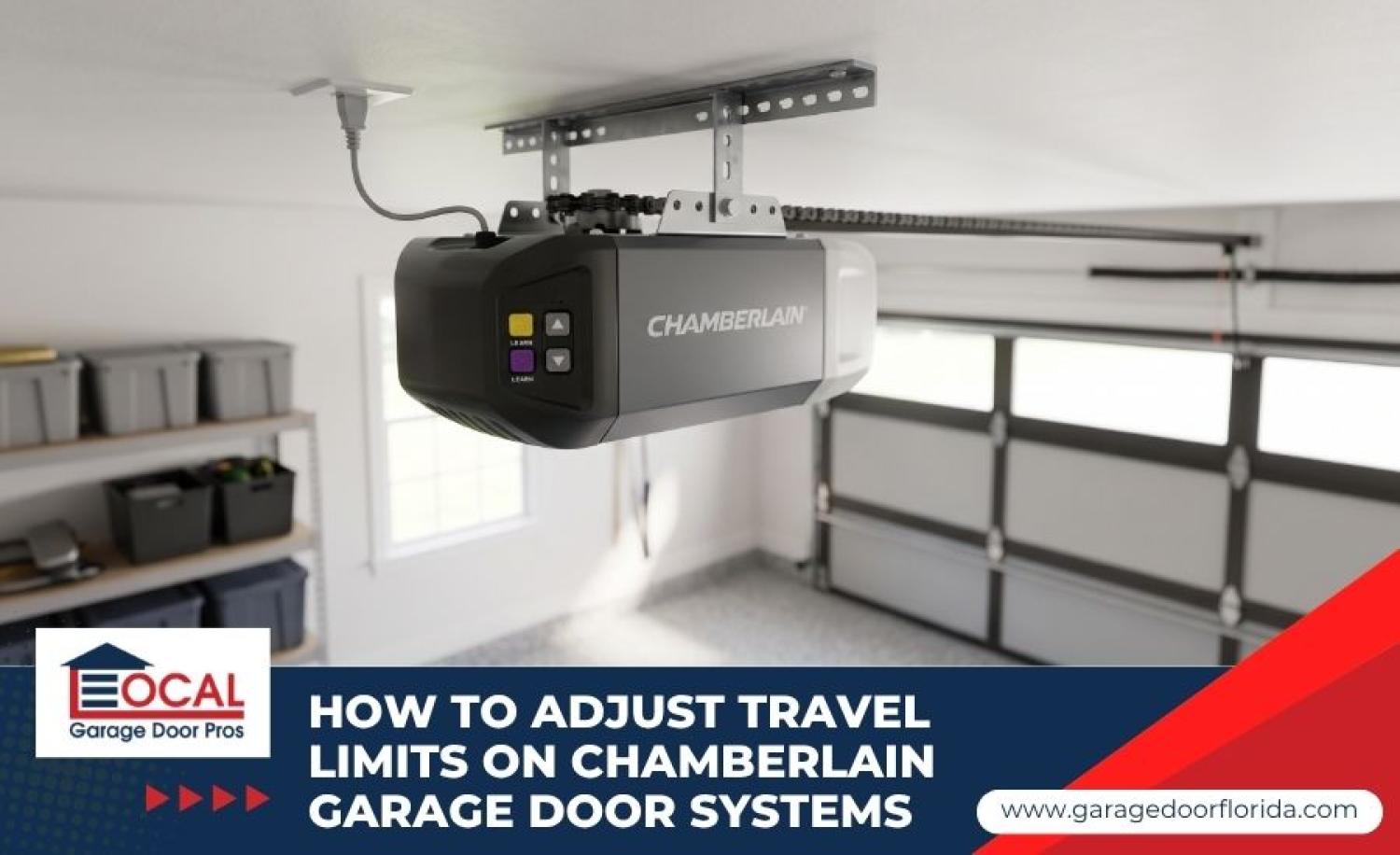

New Chamberlain units have yellow or purple learn buttons and up/down arrows on the motor. To set travel limits:

1. Press and hold the up arrow until the indicator light flashes.
2. Use the arrows to move the door to your desired open position.
3. Press the remote button to save the upward limit.
4. Move the door near the floor using the arrow buttons.
5. Hold the down arrow until the bottom weather seal touches the ground firmly.
6. Press the remote button to save the downward limit permanently.

Unsure of your motor model? Cross-reference the button colors with the official Chamberlain travel limit instructions before programming.

Older Chamberlain units have external plastic screws for travel limits. To adjust safely:

• Turn the upward screw clockwise to increase the opening height.
• Adjust the downward screw counterclockwise if the door reverses before reaching the floor, or clockwise if there's a gap.
• Make small incremental turns, testing the door after each adjustment.

Locate the recessed dials on the motor side or rear panel. Proper settings protect the mechanism and complement other devices, such as a Chamberlain keypad.

After changing travel limits, test the automatic safety mechanisms:

1. Place a sturdy block of wood in the door's path.
2. Close the door using the remote. It should reverse immediately upon touching the block.
3. If the door stops but doesn't reverse, decrease the downward force dial.

This ensures compliance with federal UL 325 safety standards and protects your family from crushing hazards.

Travel adjustments won't fix mechanical parts that are broken. Contact an expert if you notice:

• Stripped motor gears: motor hums, but the chain or belt doesn't move
• Broken torsion springs: door feels unusually heavy
• Bent or damaged tracks: rollers pop out during operation

Forcing a damaged system can permanently harm the motor or gearbox. A professional ensures safe operation and longevity.

Local Garage Door Pros is a garage door service provider in Brandon, FL specializing in emergency garage door repair and garage door installation for homeowners and business owners. Contact our team for expert help adjusting your travel limits safely, protecting your property, and maintaining reliable garage door repair services.

The downward limit is set too deep. The motor senses the floor as an obstruction and triggers the safety reversal system.

Yes. Florida building codes require secure weather sealing to meet wind-load standards. Improper sealing can lead to structural damage during storms.

Two recessed plastic dials are located on the side or rear of the motor housing. One controls travel, the other controls downward travel.

The rubber seal should rest flat on the floor without buckling. The metal rail connecting the motor to the door must remain straight.

No. A heavy door usually indicates a broken torsion spring. Travel limits only control the door's stopping points.
