Why Do Garage Door Springs Break? Common Reasons and Fixes

Why do garage door springs break? Garage door springs break primarily because of metal fatigue. Every time you open and close your door, the steel coils stretch and twist under immense tension. Over time, this constant mechanical stress weakens the high-carbon steel until it eventually snaps. Secondary factors like rust buildup, lack of lubrication, and extreme temperature shifts accelerate this structural failure.

A standard residential garage door weighs between 150 and 250 pounds. The springs counterbalance this heavy load, allowing the motor to lift the door easily. When a spring fails, the door becomes dangerously heavy and inoperable. In this guide, you will learn the mechanics of spring failure, how to spot warning signs, and the safest methods to restore your door's balance.

Identifying the cause of a break helps you decide between a standard replacement or a heavy-duty hardware upgrade. Use this table to match your symptoms with the most likely mechanical failure.

Springs hold immense kinetic energy. Several environmental and mechanical factors speed up the wear process, causing the metal to break before its expected lifespan ends:

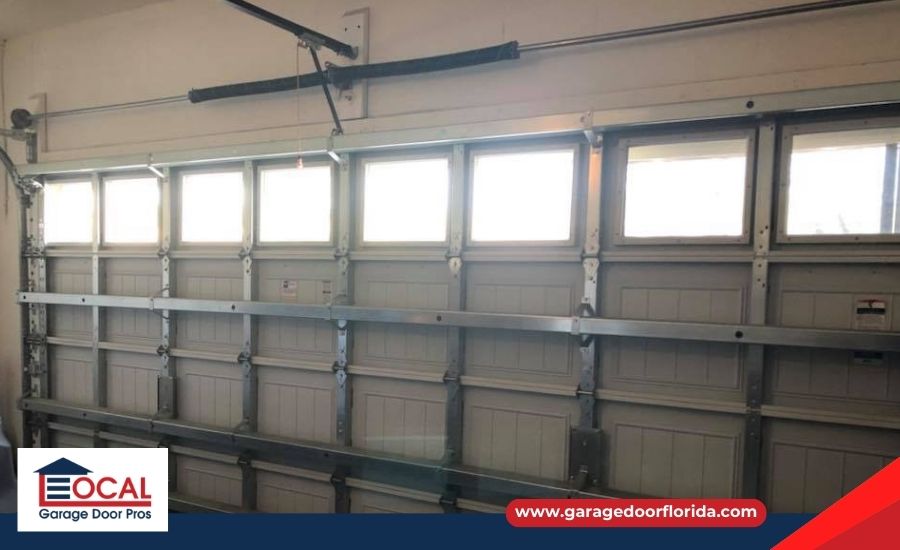

• Natural Wear and Tear: Manufacturers rate every spring for a specific number of cycles (one cycle equals one full opening and closing). Standard springs last about 10,000 cycles. Once you hit that limit, the steel yields and breaks.

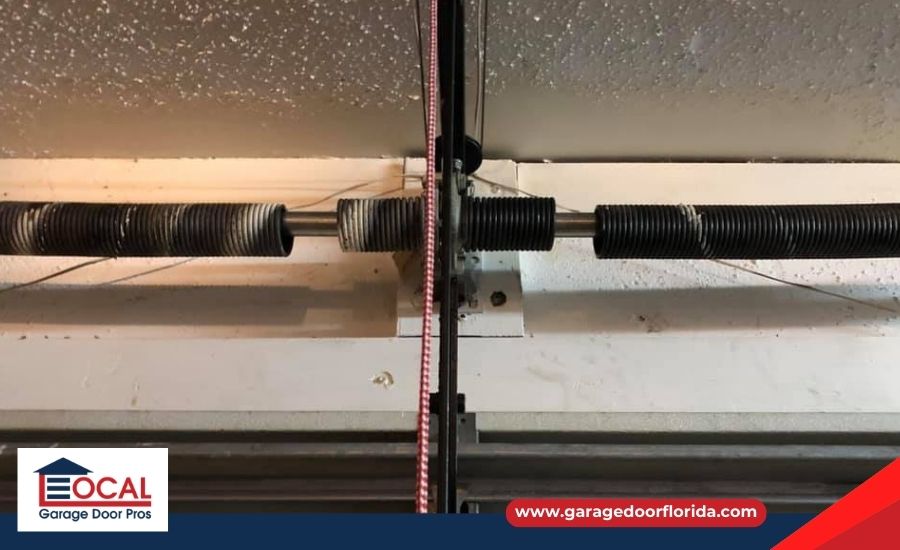

• Corrosion and Rust: Rust creates friction between the moving coils. This friction wears down the steel and causes deep pits where micro-cracks form and expand.
• Cold Weather Stress: Freezing temperatures force steel to contract, which increases internal tension. If a spring already suffers from metal fatigue, this sudden thermal stress can trigger a break.
• Lack of Lubrication: Dry coils grind against each other. This metal-on-metal friction accelerates rust and physically degrades the spring wire.

When a spring snaps, you cannot weld or repair the broken metal. You must replace the hardware to restore the counterbalance system and protect your opener motor:

• Complete Spring Replacement: Technicians remove the broken unit and install new springs precisely calibrated to your door's specific weight and height.
• Upgrading to High Cycle Springs: You can upgrade to heavy-duty springs rated for 25,000 to 50,000 cycles. This extends the lifespan of your system significantly.
• Replacing Both Springs: Technicians always replace springs in pairs. The unbroken spring endured the exact same mechanical stress and will likely break shortly after the first.
• Recalibrating the Opener: After installing new springs, you must adjust the force and travel limits on the opener so the motor runs safely without straining.

Routine maintenance extends the life of your hardware. Keeping the system lubricated and balanced reduces the physical strain on the steel. Follow these steps to maintain your springs:

1. Apply Silicone Lubricant: Spray a dedicated silicone-based lubricant across the entire length of the spring every six months to prevent rust and reduce coil friction.
2. Perform a Balance Test: Disconnect the opener by pulling the red release cord. Lift the door halfway manually. It should stay in place. If it falls heavily to the floor, the springs need a tension adjustment.
3. Tighten Loose Hardware: Inspect and tighten the brackets and bolts along the tracks. Loose hardware causes excessive vibration, which transfers unnecessary stress to the springs.
4. Clear the Tracks: Wipe dirt and debris from the side rails. Clean tracks allow the rollers to move freely, reducing the pulling force required from the springs.

Garage door springs store enough kinetic energy to cause severe injury if they snap or unwind improperly. You need a trained technician for the following situations:

• Torsion Spring Winding: Adjusting the tension on a torsion spring requires specific, hardened steel winding bars and exact calibration.
• Frayed Lifting Cables: The cables connect the springs to the bottom of the door. If these peel or rust, they can snap under pressure and drop the door.
• Heavy Door Symptoms: If your door feels unusually heavy to lift manually, the springs have lost their tension. An expert must recalibrate the balance.
• Emergency Entrapment: If a spring breaks while your car is inside, do not use the automatic opener. A technician can safely manually lift the heavy door without burning out the motor.

Managing your garage door system requires tracking your cycle count and protecting the metal components from friction and moisture. Regular lubrication and early rust detection add years of life to your springs. Because the springs do the heavy lifting, keeping them in peak condition protects your opener and prevents costly emergency repairs.

Local Garage Door Pros is a garage door service provider in Brandon, FL, specializing in emergency garage door repair and garage door installation for homeowners and business owners. We prioritize your safety by providing precision spring balancing and durable hardware replacements. Contact us today for reliable garage door spring repair in Brandon, FL.

Has Your Spring Reached the End of Its Lifespan? Schedule a Replacement Today.

Standard springs last between 6 and 9 years, depending on your daily usage. If you use your garage as your home's primary entrance, you will reach the cycle limit faster.

Cycle life is the total number of times a spring can open and close a door before the metal suffers fatigue failure. Most standard builder-grade springs carry a 10,000-cycle rating.

Yes. Extreme cold causes steel to contract, which increases internal stress on the metal. This thermal contraction often causes an already fatigued spring to snap during a routine cycle.

Yes. Rust creates severe friction between the coils and physically degrades the steel. This structural damage creates weak points that lead to a sudden break.

The most effective way to extend spring life is to apply a silicone-based lubricant twice a year. Maintaining door balance and keeping the tracks clear of debris also reduces the mechanical workload on the springs.
