Guide to Troubleshooting Craftsman Garage Door Opener Problems

Most Craftsman garage door opener problems stem from misaligned safety sensors, stripped drive gears, faulty logic boards, or remote frequency interference. You can diagnose these common failures by observing the opener's flashing LED light codes, listening for motor hums without movement, or testing the door's travel limits. This guide explains how to read these diagnostic codes, perform simple mechanical repairs, and identify when an issue requires professional service.

Craftsman openers use LED light patterns to indicate internal faults. Match the flashes on your motor head to this table to identify the issue before you disassemble the unit:

Observe your system's exact behavior before attempting a repair. Pay attention to these specific components and symptoms:

• Flashing Light Codes: The small LED light near the Learn button blinks to indicate which internal sensor or circuit is failing.
• Motor Hum Without Movement: The motor runs inside the unit, but the chain or belt remains still.
• Safety Sensor Reversals: The door begins to close but pops back up because the infrared eyes at the bottom of the tracks are dirty or misaligned.
• Intermittent Remote Response: The door opens from the wall button but ignores your remote or keypad due to frequency interference or a dead battery.
• Partial Travel Shutdown: The door travels six to eight inches before stopping and reversing. This indicates a sensor, force setting, or RPM monitoring issue.
• Grinding Metal Noises: A loud grinding sound during operation suggests shredding internal gears or a derailed chain.
• Strained Motor Startup: The motor struggles to lift the door or moves slowly. This points to a loss of force or a failing start capacitor.

You can fix many opener issues with basic hand tools. Follow these steps to restore your system:

1. Adjust the Travel Limits: Turn the plastic screws on the side of the motor unit to control the door's stopping point.
2. Swap the Drive Gear: Open the motor cover and look for plastic shavings. Replace the white plastic gear if it is stripped.
3. Reset Remote Programming: Hold the Learn button down to erase all programmed remotes. Reconnect them if they lost their signal.
4. Replace the Capacitor: Install a new start capacitor if the motor only clicks or hums. Only do this if you understand electrical safety, as capacitors hold a dangerous charge even with the power off.
5. Lubricate the Rail and Chain: Apply a silicone-based spray to the drive rail and sprocket to stop grinding noises and reduce motor strain.
6. Realignment of Safety Sensors: Tighten the wing nuts on the sensor brackets. Ensure the infrared eyes point directly at each other.
7. Use Interference-Free Bulbs: Replace low-quality LED or CFL bulbs with opener-compatible bulbs to prevent radio frequency interference.

Certain failures require specialized diagnostic equipment and training. Contact a specialist if you face these technical problems:

• Fried Logic Board Replacement: A power surge can scorch the circuit board. A professional ensures the new board matches your existing frequency and security codes.
• Snapped Drive Chain or Belt: Re-tensioning a snapped loop requires exact torque settings. Incorrect tension will bow the rail or burn out the motor.
• Internal Motor Component Failure: A technician can determine if rebuilding a motor with a burnt winding or failed drive shaft is cheaper than replacing the whole unit.
• Faulty Force Sensitivity Calibration: If the opener fails to reverse on contact, a professional must calibrate the sensitivity to comply with UL 325 safety standards.

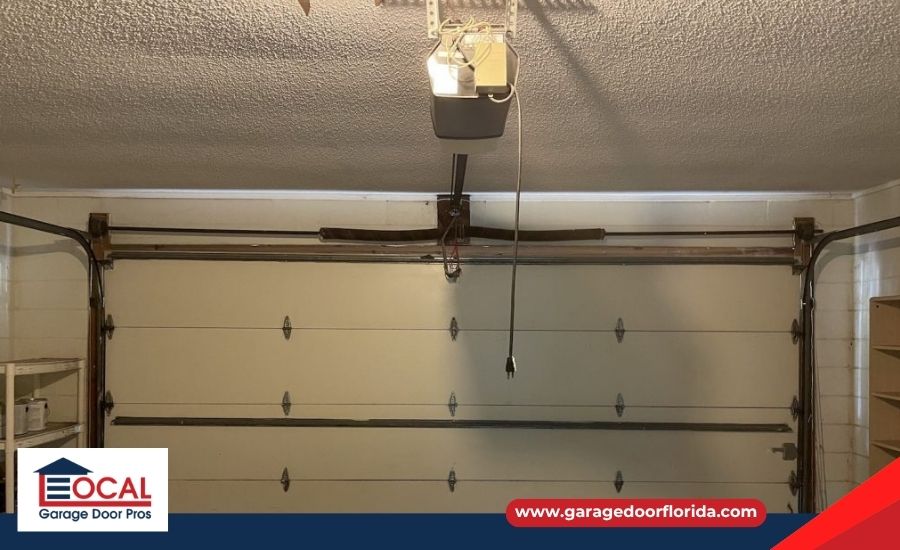

Routine maintenance prevents small adjustments from becoming expensive repairs. Test your safety sensors and lubricate moving parts twice a year. This extends the motor's lifespan and keeps your door operating safely.

Local Garage Door Pros is a full-service garage door company serving the Tampa, FL area, specializing in residential and commercial garage door repair, spring replacement, and emergency installation services for local property owners. If you need assistance with an aging motor, contact us for professional garage door repair in Tampa to restore your system today.

This happens due to a stripped drive gear or a failed capacitor. If the motor runs but the chain does not turn, the internal plastic gears are worn down and require replacement.

Press the colored Learn button on the motor head once. Then, hold the button on your remote until the opener lights flash. The color of the Learn button (Green, Red, Purple, or Yellow) dictates the remote technology you need.

A blinking light on the wall station means the "Lock" feature is active. Hold the Lock button for a few seconds to deactivate it and restore remote functionality.

This points to a faulty RPM sensor or a tracking system error. The motor shuts down as a safety precaution because it cannot verify the door's movement speed.

Check the color of the Learn button. Green means 390MHz (Billion Code). Red or Orange means 390MHz (Security+). Purple means 315MHz (Security+). Yellow means Security+ 2.0, which uses multi-frequency signals.
